Hobart PROFI FXL-90C Large Chamber Undercounter Dishwasher - Tray Warewasher

SKU: HOB-FXL-90C

Hobart PROFI FXL-90C Large Chamber Undercounter Dishwasher - Tray Warewasher

Cycle Times* 4 wash cycles - 90, 180, 360 (fill & dump) seconds plus Basic Clean 360 seconds
Water Consumption 1.8 l/rack
Tank Capacity 10.6 L
Tank Heating 0.8 kW
Power Supply 240 / 50 / 1 (415/50/3+NPE)
Booster Loading - Standard 2.0 kW l 15 A
Booster Loading - Alternative 6.1 kW l 15 A (3phs)
Total Loading - Standard 2.6 kW l 15 A
Total Loading - Alternative 6.7 kW l 3 x 15 A
Wash Pump 0.5 kW l 350 l/min
Rack Size 500 x 500 mm
Loading Height 425 mm
Noise Level 59 dB (A)
Weight (gross / net) 70 / 60 kg
*Thermostop guarantees required temperatures with cold water and / or 240 V connection, the actual cycle times extend accordingly.
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using an integrated water softener or an external water softener of the product line HYDROLINE PROTECT.
To avoid spots and streaks on the wash ware, we recommend the usage of an demineralisation cartridge (PURITY / PURITY EXTRA) or a reverse osmosis system HYDROLINE PURE.

$10,793.00$18,770.00

Hobart PROFI FXL-90C Large Chamber Undercounter Dishwasher - Tray Warewasher

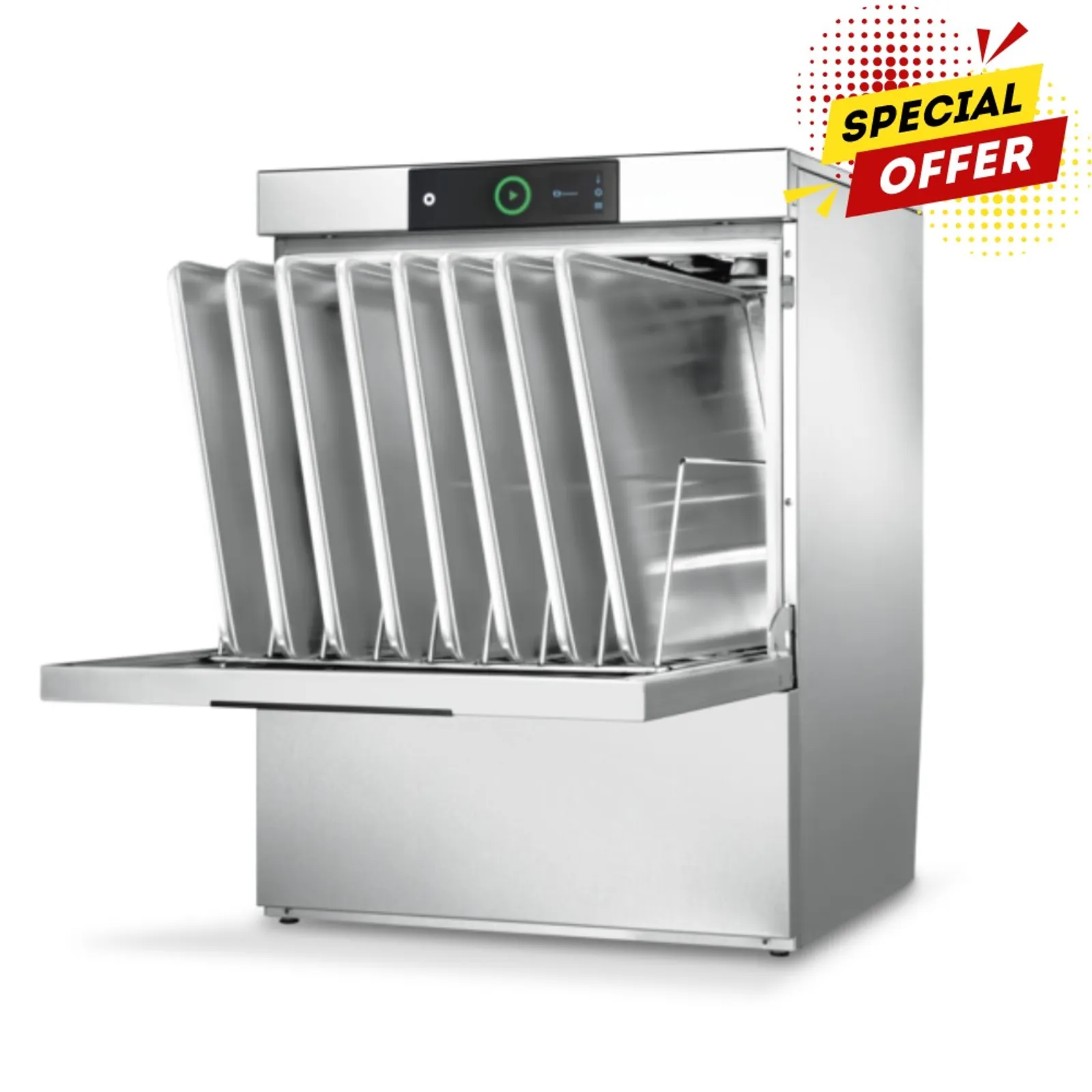

The PROFI model with the XL depth of the wash chamber cleans baking trays and meat trays with no trouble. This makes it the ideal partner for bakers, butchers and fast food outlets.

Front door glass and dishwasher with deeper wash chamber and optional double rack system
Nominal capacity up to 40 racks/h or 720 plates/h or 1,440 glasses/h
Nominal capacity with double rack: up to 80 racks/h (40 plate racks + 40 glass/cup racks)
4 wash cycles - 90, 180, 360 (fill & dump) seconds plus Basic Clean 360 seconds
Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber
Automatic self-cleaning programme
Smooth counterbalanced door with closing mechanism
Multi-setting: easy switchable from 415 V to 240 V on site
Ready to install - completely equipped: fill / drain hose, power cord (240 plug & lead), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
Tank, frame, rinse arm and panels are stainless steel 1.4301
Integrated WiFi module
1 plate rack P-18-12
1 insert for sheets 324660
1 cutlery box CB1

Features:

XL wash chamber: suitable to wash trays of 600 x 400 mm. Ideal for fast-food restaurants, cafés and snack bars.
Self-cleaning wash system: The combined wash and rinse system features innovative self-cleaning of the wash arms with every cycle. This saves time and ensures a perfect cleaning result.
VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with singlebutton control and remaining cycle time indication.
SMARTCONNECT app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order.
SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result.
2IN1 double rack system: two racks can be washed in a single wash cycle. One rack of cups can be washed underneath, while a second rack containing dishes and cutlery can also be washed above it. Thanks to the optimum use of the entire wash chamber the performance of the machine can be doubled.
CLIP-IN wash and rinse arms: wash and rinse arms can be removed with one hand and without any tools.
Intelligent data documentation: automatic recording of important operational data and consumptions and indication on the display.
USB-interface: comfortable download of operational data in form of a protocol via USB.
GENIUS-X² fine filter system: advanced filter system with prewash function reduces detergent consumption up to 35 %.
Interlocked strainer: prevents operation without tank strainer.
Optional Refill signal: monitors contents of external as well as integrated chemical containers.
Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber.
Watermark approved to WMTS-101:2018, Cert. WMKT21944
