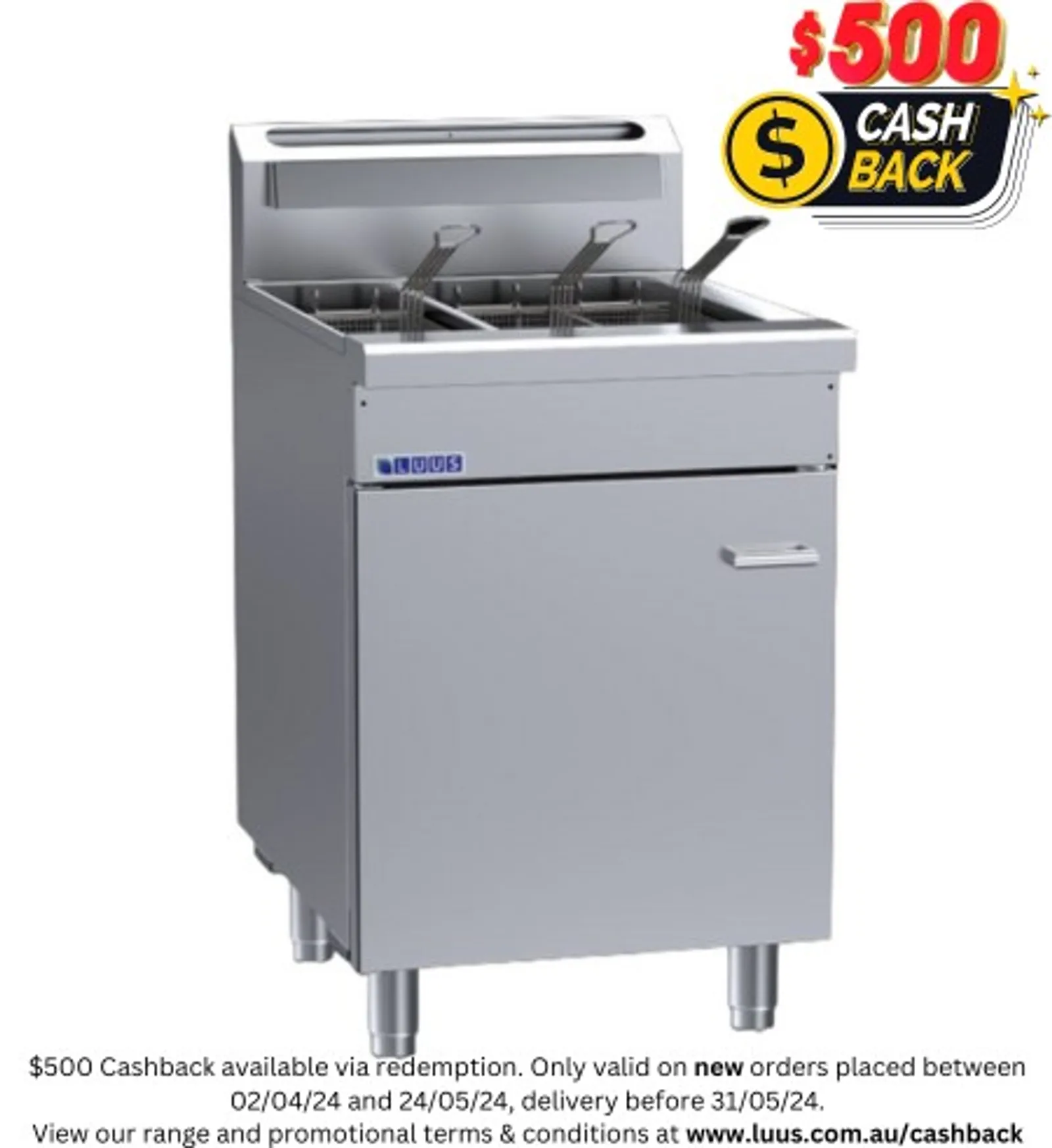

LUUS FSV-60 - 3 Basket Split V-Pan Fryer

Industry first single + double basket split pan design. 600mm wide high performance split V-pan fryer. Compact 800mm deep. Fenwal thermostat control, high density Fiberfrax Durablanket insulation around tank, piezo ignition, and FFD & high temp safety devices.

Dimensions: 600w x 800d x 1100h
Burner: 50mj + 85mj jet burners with pilot, FFD and piezo ignition
Capacity: 11 + 17.5 litre fry pot capacity
Baskets: Includes 3 stainless steel fryer baskets
Gas Rating: 50mj + 85mj NAT / 50mj + 85mj LPG

$7,650.00$10,200.00

LUUS FSV-60 - 3 Basket Split V-Pan Fryer

FSV series fryers feature an easy to clean stainless steel split “V-pan” tank with a large cool zone. Premium components such as Fenwal thermostats improve accuracy and reliability, while efficient multi-jet burners optimise performance and recovery rates. Available in 450mm and 600mm wide models.

Split Pan Fryer

50MJ/h + 85MJ/h jet burners with pilot, FFD and piezo ignition
Mechanically controlled thermostat
Thermostat temperature range 100 - 200° C
High temperature cut-out safety mechanism
1.5mm stainless steel stud weld efficient tank design
11 + 17.5 litre fry pot capacity
Includes 3 stainless steel fryer baskets
0.9mm stainless steel perforated fish/base plate
Tank drainage valves at bottom front of unit

Overall Construction

Heavy duty construction
0.9mm 304 stainless steel double-skinned door
High density Fiberfrax Durablanket insulation around tank
Welded 1.2mm 304 stainless steel front hob
Front panels 0.9mm 304 stainless steel
Side panels 1.2mm 304 stainless steel
Splashback 1.2 mm 304 stainless steel
Includes stainless steel legs with 55mm adjustable range

Connections

Gas 3/4” BSP male
Gas 225mm from right, 55mm from rear, 165mm from floor
In-built gas regulator (specify Nat or LP on order)
Drains 1 1/4” BSP male and 170mm in from both left and right, 200mm from front, 415mm from floor

Cleaning & Servicing
