Hoshizaki FM-480AKE-N Nugget Ice Maker 360kg/day - BUNDLE

Hoshizaki FM-480AKE-N Nugget Ice Maker 360kg/day - BUNDLE

SKU: HOS-FM-480AKE-N-BUNDLE

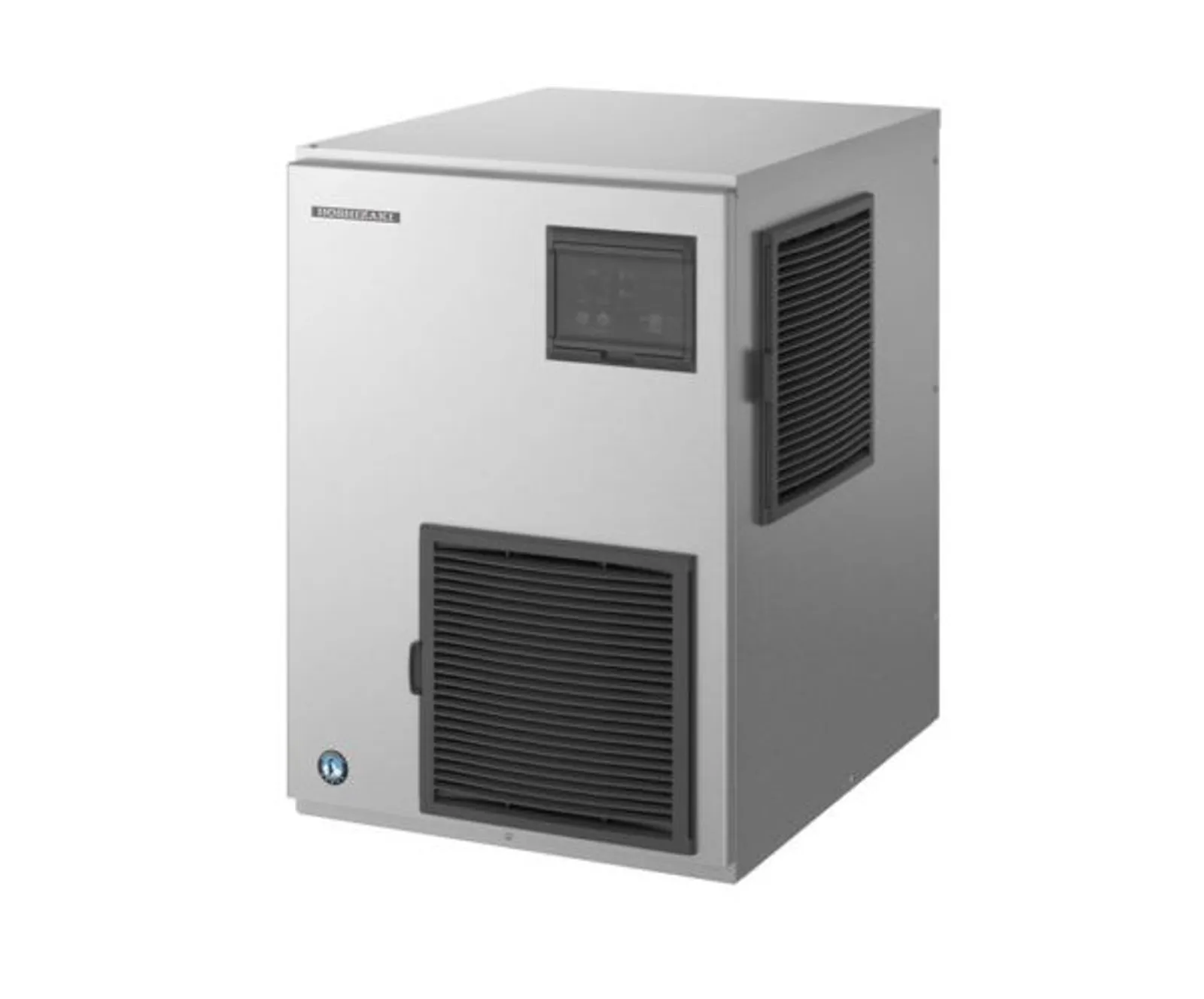

Hoshizaki FM-480AKE-N Nugget Ice Maker 360kg/day

Production Capacity per 24hoursApprox. 430kg @10°C Air temp; 10°C Water
Approx. 360kg @ 21°C Air temp; 15°C Water
Approx. 290kg @ 32°C Air temp; 21°C Water

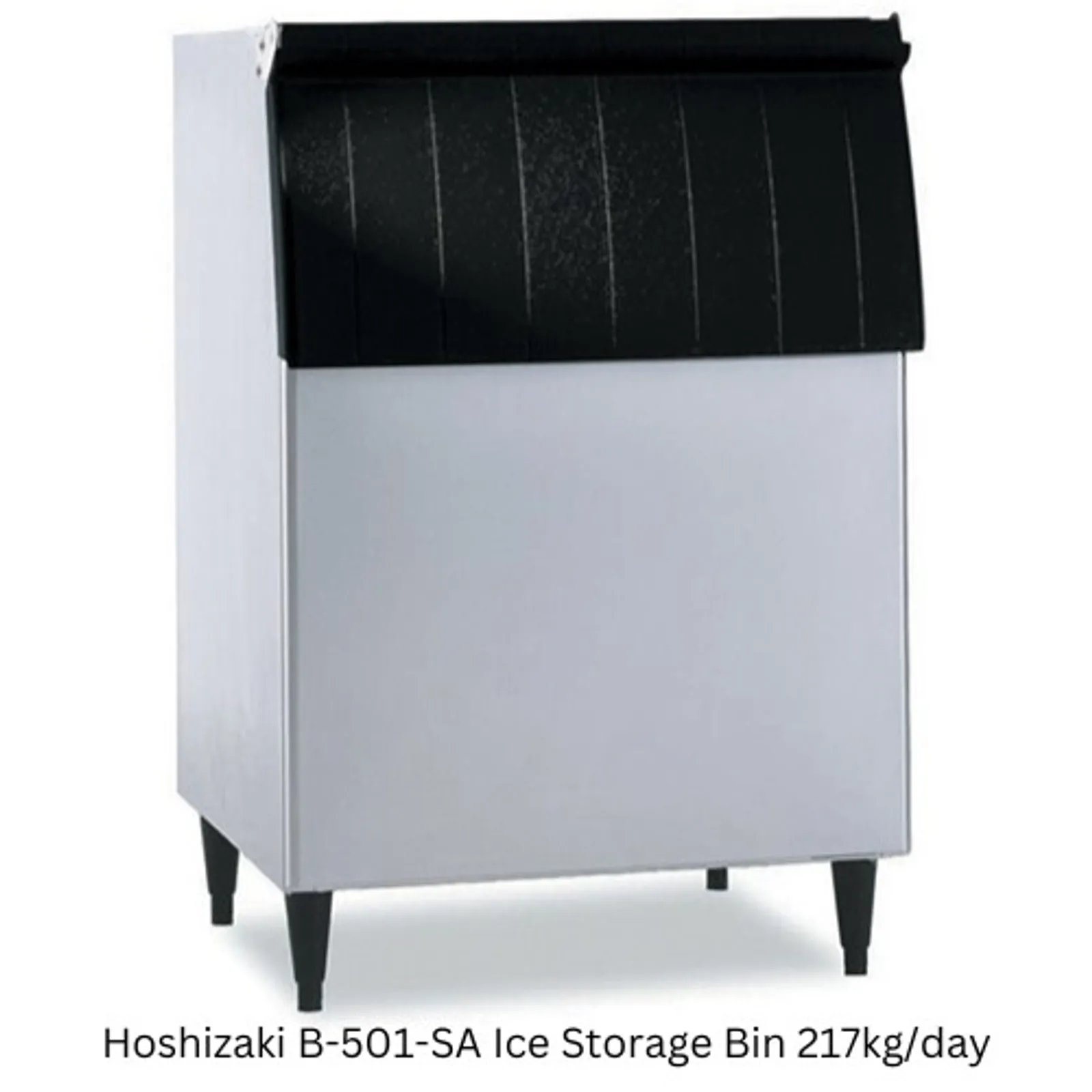

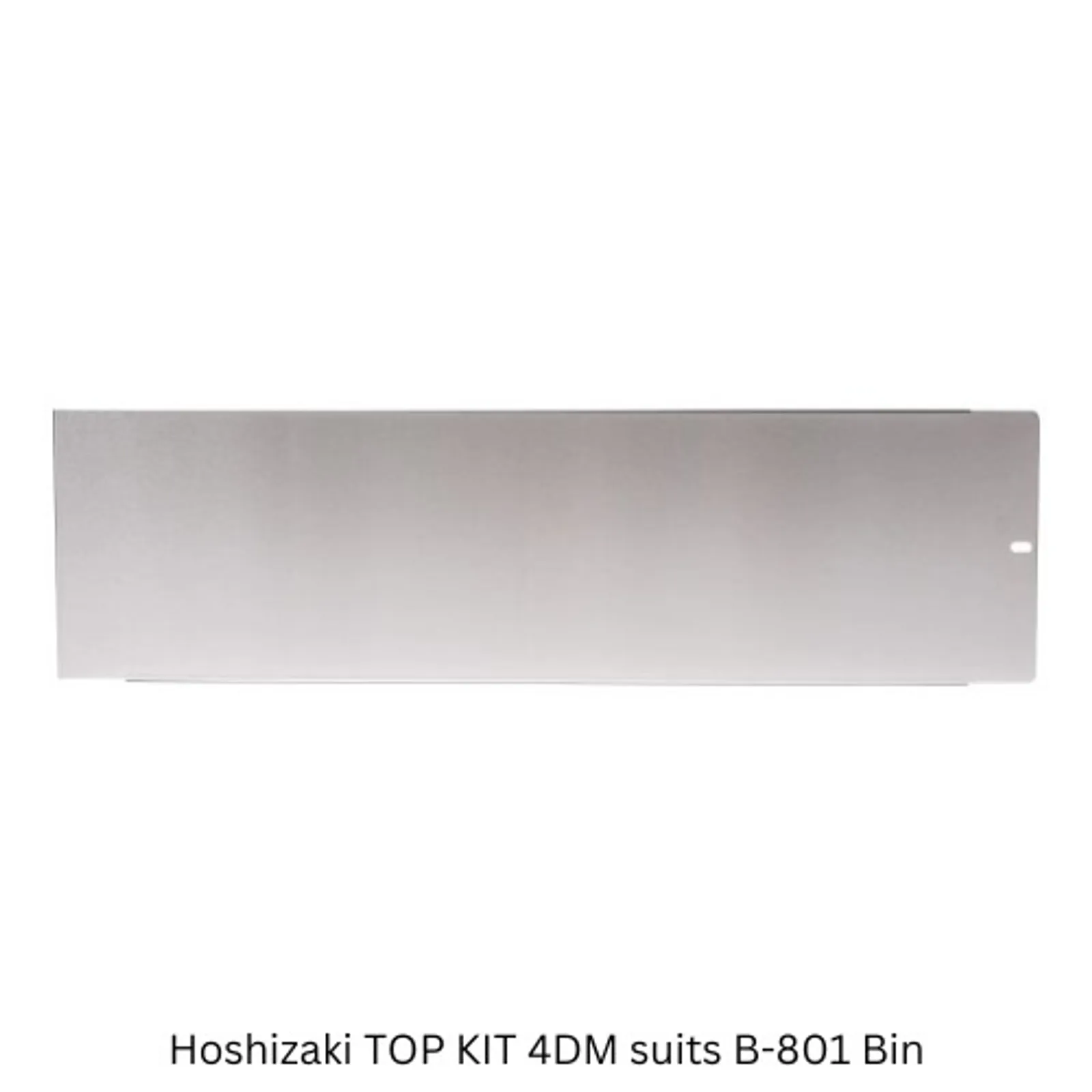

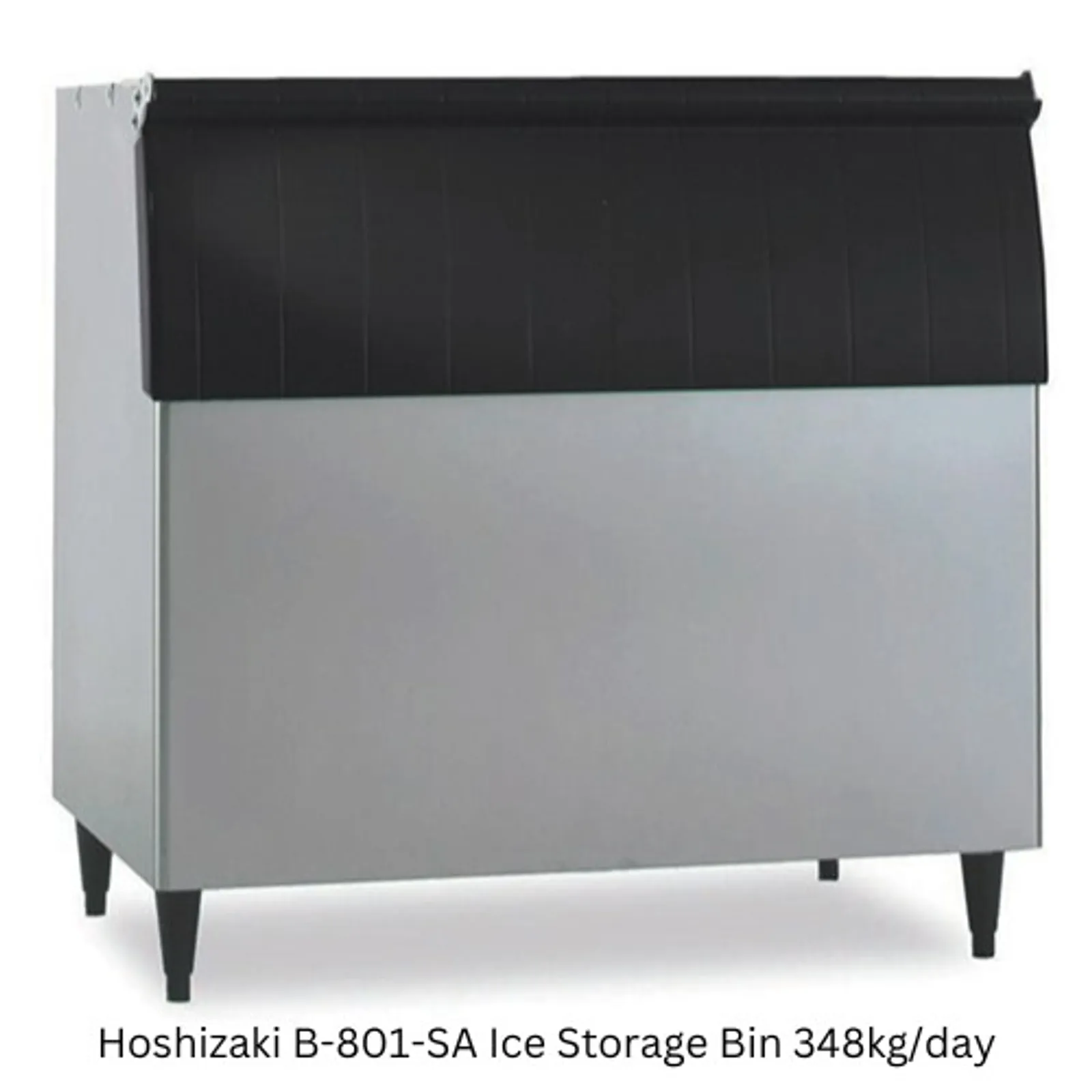

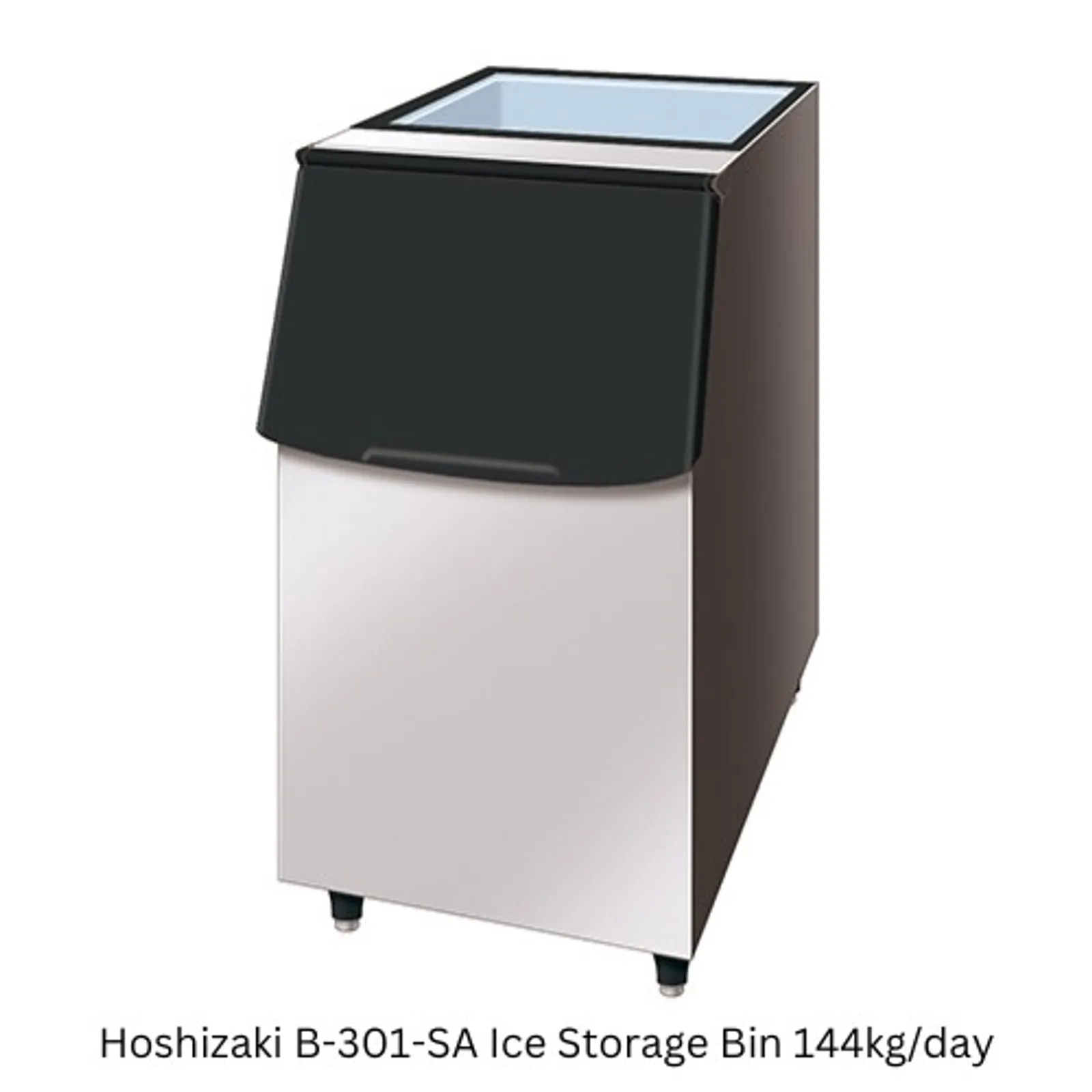

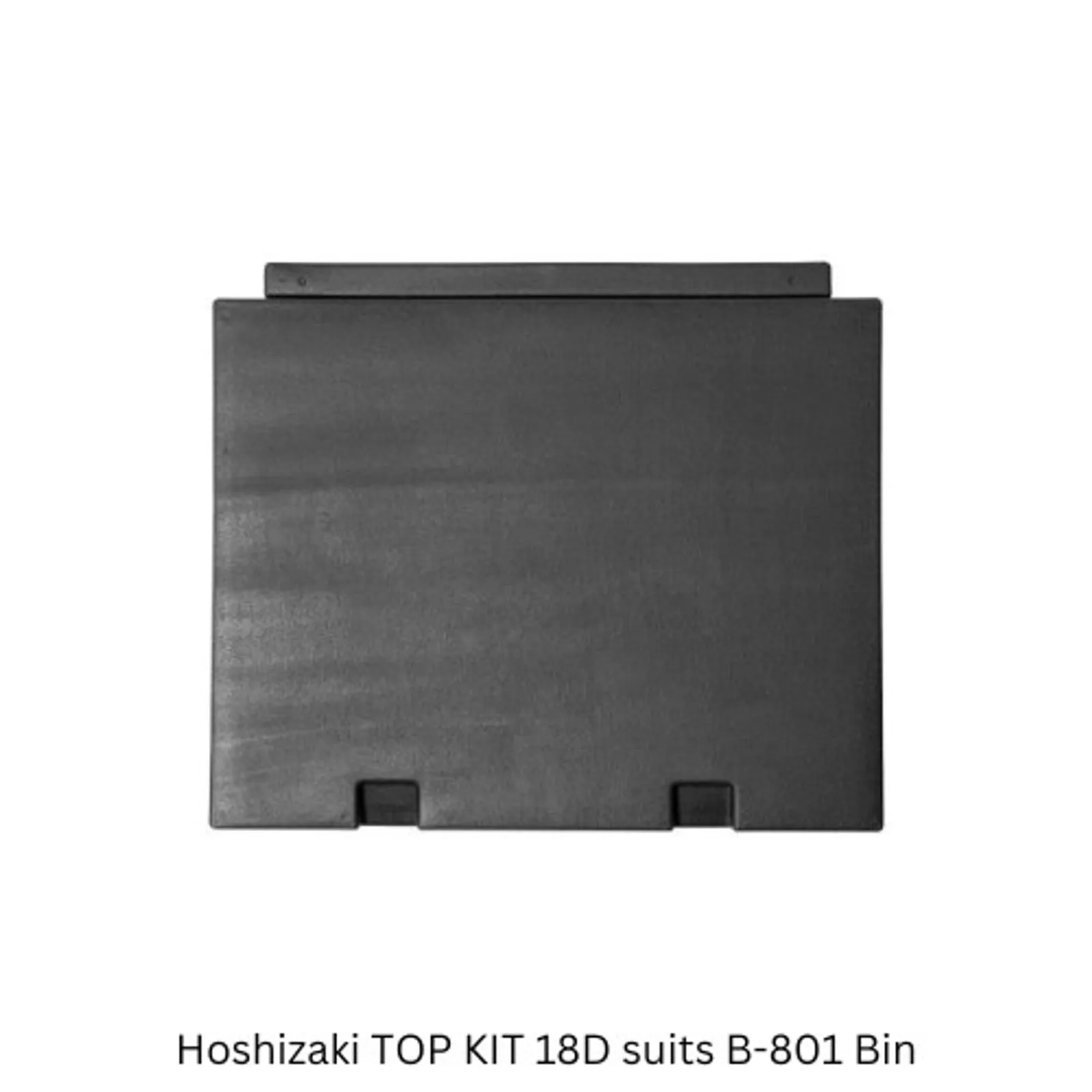

Max Storage CapacitySelect Bin & Kit
Dimensions560mm (W) x 700mm (D) x 780mm (H)
CoolingAir
Weight Net/Gross (kg)95 / 102
AC Supply Voltage1 PHASE 230V 50Hz / 10 AMP Plug
AmperageRunning: 8.4A Starting: 43A
Refrigerant ChargeR404A
Operating ConditionsAmbient Temp.: 5-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: Rated Voltage ±10%

Call for Price

Hoshizaki FM-480AKE-N Nugget Ice Maker 360kg/day

This modular ice maker produces nugget ice, which is often used for produce display of fish, fresh food and bottled beverages. Utilizing the most efficient ice making process due to the unique auger system, water consumption is equal to ice production.

Features:

  • “Freeze Burn” is no longer an issue when displaying fresh fish or produce.
  • Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
  • Automatic flush function, helps keep the ice making system clean.
  • Controller board with Operational Status display assists in trouble shooting.
  • Due to the auger system, water consumption is equal to ice production.
  • 2 year parts & labour on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.
