Clifton CFSINGLE014 Single 14 Litre water bath tank with single control Features:

• The ‘space saving’ bath can be integrated into a new or existing kitchen establishment and easily assembled using the clear, concise instructions. The unit consists of an under-mounted heater on the tank and large bore, (38mm diameter) flip top drain fitted into each tank, for connection to standard waste outlet. Control panel is brushed stainless steel, with fixing holes and graphic overlay.

• Controller and tank are pre-calibrated as a matched pair. The underside of the drop in tank is enclosed to prevent access to the wiring. When installing, access should be made available for maintenance by a qualified electrical personnel. To assist installation, all electrical and temperature probe connections are clearly marked and fitted with plugs and mating sockets.

• Temperature can be easily and rapidly set with the push button, wipe clean control panel mounted on the front of the work surface.

• If the water in the tank drops below the recommended minimum level or the unit is inadvertently switched on without being filled with water, ‘FILL’ appears on the display as a visual alert and gives run dry protection.

• Each bath is supplied with a stainless steel lid(s) which has an easy grab insulated handle. Constructed from high quality stainless steel. The bath is also supplied with a removable stainless steel perforated shelf which provides effective distribution of heat uniformly throughout the bath by convection.


CONFIGURATIONS

The following configurations are available:

• Single 14 litre tank with Single Control (CFSINGLE014)

• Single 28 litre tank with Single Control (CFSINGLE028)

• Double 14 litre tanks with Double Control (CFDOUBLE014)

• Double 28 litre tanks with Double Control (CFDOUBLE028)


PERFORMANCE & FEATURES

• Single tank controls, Brushed stainless steel

• Fixing holes and graphic overlay

• Safety: Visual ‘FILL’ message on low water level, run-dry protection

• Display/resolution: Digital LED/0.1°C

• Temp. range: Ambient + 5°C – 95°C

• Temp. setting: Push button

• Stability/uniformity: ± 0.2°C/± 0.1°C

• Display/resolution: Digital LED/1 minute increments

• Duration: 1 minute – 99 hours

• Cycle end: Audio/visual alert


DIMENSIONS

• Single control panel (HxW): 136 x 357 mm

• Double control panel (HxW): 136 x 460 mm

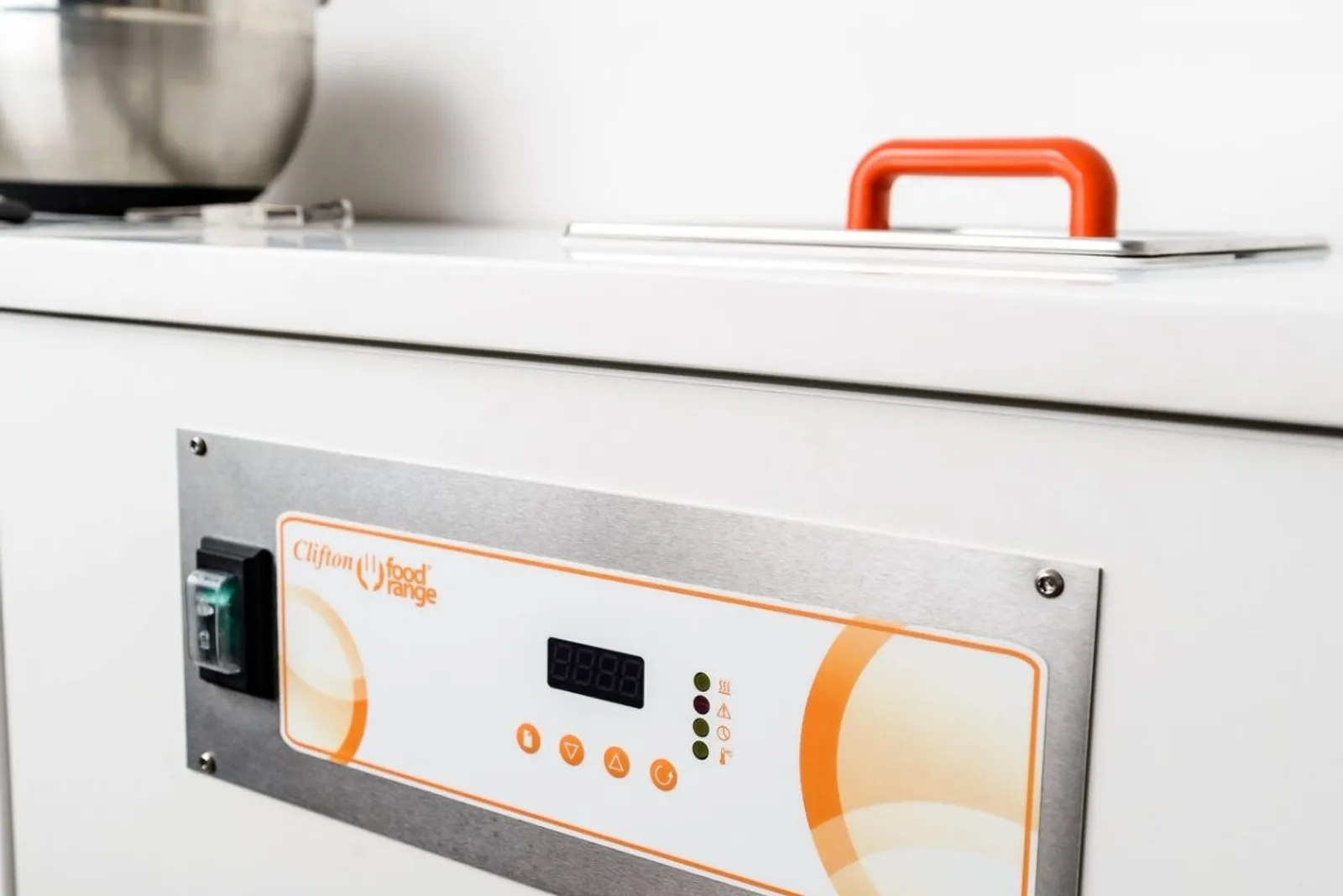

PLEASE NOTE IMAGE IS FOR REFERENCE PURPOSES ONLY
